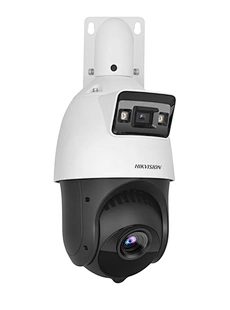

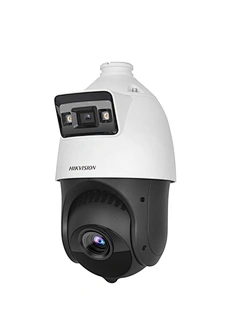

HIK TandemVu 4-inch 4 MP 25X Colorful IR Network Speed Dome PTZ Colorvu Camera DarkFighter DS-2SE4C425MWG-E/14(F0)

DS-2SE4C425MWG-E/14(F0)
Captures a large area and great details at the same time
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
Secures an expansive area with 25× optical zoom and 16× digital zoom
Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
Expansive night view with up to 100 m IR distance & 30 m white light
Supports 12V DC & PoE+
Focuses on human and vehicle targets classification based on deep learning
Quantity:
Contact Now
add to cart
Image Sensor
[Bullet channel]: 1/3"Progressive Scan CMOS; [PTZ channel]: 1/2.8"progressive scan CMOS
Minimum Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
White Balance
auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Zoom
[PTZ channel] 25 × optical, 16 × digital
Day/Night Switch
day, night, auto, scheduled-switch
Max. Resolution
[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
WDR
120dB
Shutter Time
1/1 to 1/30,000s
Day& Night
ICR
Digital Zoom
16×
Auto Focus
Auto / Semi-automatic / Manual
Lens
Focal Length
[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
Zoom Speed
[PTZ channel]: approx. 3.6 s
Field of View
[Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°，Diagonal field of view: 113.3°; [PTZ channel]:
Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5°
to 2.8° (wide-tele)
Aperture Range
[Bullet channel]: F1.0; [PTZ channel]: F1.6
Pan & Tilt
Pan Range
360°endless
Pan Speed
pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed
tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoom
yes
Number of Preset
300
Patrol
8 patrols, up to 32 presets for each patrol
Pattern  Scan
4 pattern scans
Power-off Memory
Support
Park Action
preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
PTZ Position Display
yes
Infrared
IR Distance
[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
Alarm
Alarm Input:
1
Alarm Output:
1
Alarm Linkage:
[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger
recording [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger
recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Input & Output
Audio Compression
G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
Audio Bit Rate
32 to 160 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
Network
API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Main Stream:
[Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 ×
960, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920
× 1080, 1280 × 960, 1280 × 720)
Sub Stream:
[Bullet channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
[Bullet channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080,
1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 ×
576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main Stream: H.+/H./H.264+/H.264
Simultaneous Live View
Up to 20 channels
Storage:
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures
User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Client
Client
iVMS-4200, Hik-Connect
General
Power Supply
12VDC, PoE+
Power Consumption
Max.: 18W (IR light 5W Max.)
Working Temperature/Humidity
Outdoor: -30°C to 65°C (-22°F to 149°F)
Humidity:≤ 90%
Protection Level
IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions
Ø 166 mm × 375 mm (Ø 6.5"× 14.7")
Weight (approx.)
Approx. 2.45kg (5.40lb)
